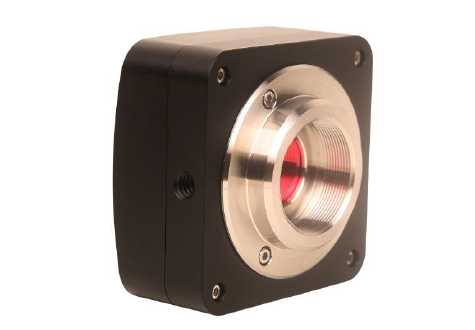

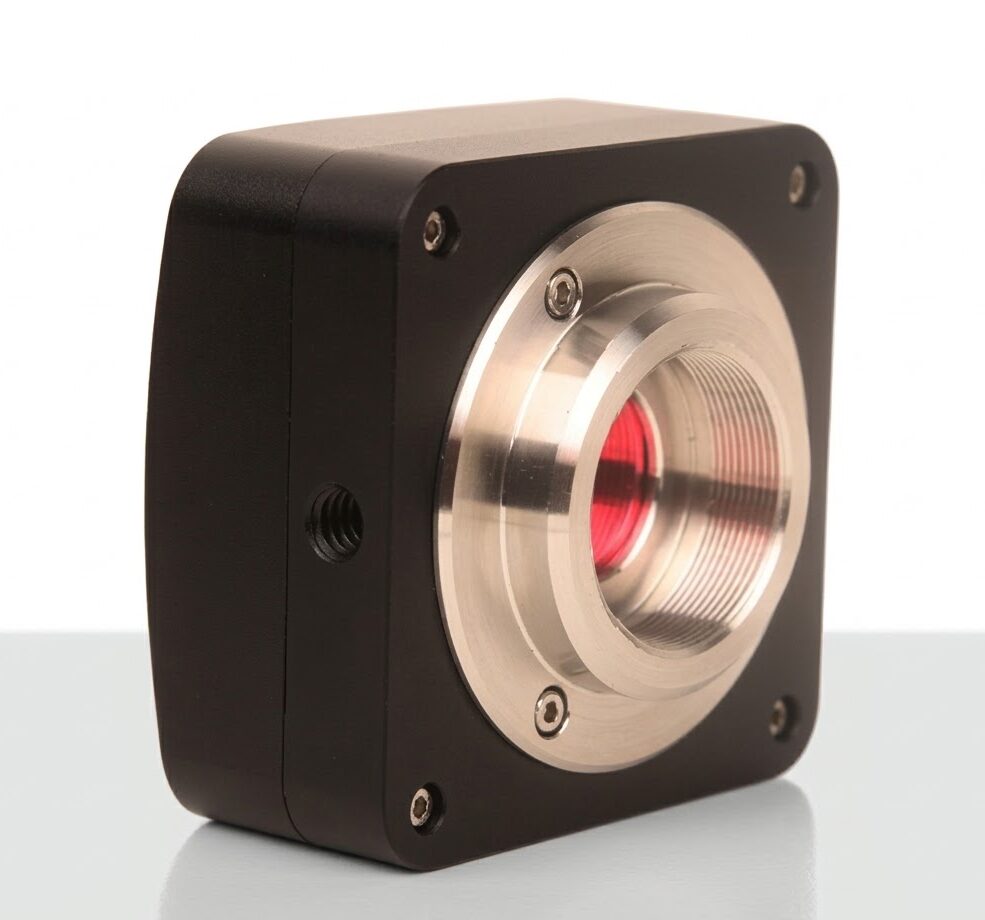

SG MICROVISION CMOS MICROSCOPE CAMERA (CSG001-2026)

The SG Micro Vision CMOS Microscope Camera (CSG001-2025) is intended for users who require a simple USB-based imaging solution for trinocular microscopes. It is commonly used by laboratory technicians, educators, and industrial inspection teams for routine microscopic observation, image documentation, and video recording through standard microscope software.

Check catalogue for model dependent features & detailed information.

Key Features
• CMOS sensor options up to 10 MP
• Supports still image and video capture
• Live view with different fps (Model dependent)
• Adjustable exposure control
• Direct USB connection to microscope and computer
• Multi-platform operating system support

Basic Technical Details:
Sensor and Resolution
• Available resolutions: 5.1 MP / 8 MP / 9 MP / 10 MP
• CMOS sensor technology
• Colour camera with IR-cut filter

Imaging and Performance
• Pixel size: 1.55 µm (10 / 9 / 8 MP), 2.2 µm (5.1 MP)
• Exposure time range: 0.2–2000 ms (model dependent)
• Binning modes: 1×1, 2×2, 4×4

Software and SDK
• Supported operating systems: Windows, macOS, Linux, Android
• Supported interfaces: C/C++, C#, VB.NET, Python, Java, DirectShow, TWAIN

Power and Cooling
• Power supply: DC 5V via USB
• Cooling method: Natural (fan-less)

Included Items
• SG Micro Vision CMOS Microscope Camera (CSG001-2025)
• USB 2.0 High-Speed Cable

Additional Information
• Detailed frame rate data, environmental conditions, and system requirements are
provided in the datasheet
